CO22-5GB-CA Aluminum Hook Cylinder

Drawing:Data Download Drawing:Data Download(3D File)

Model:CO20-5GB-CA Cylinder Body Material: Aluminum (Black Anodized)

Instant inquiry Hotline
+0086-021-59542699
Product Introduction

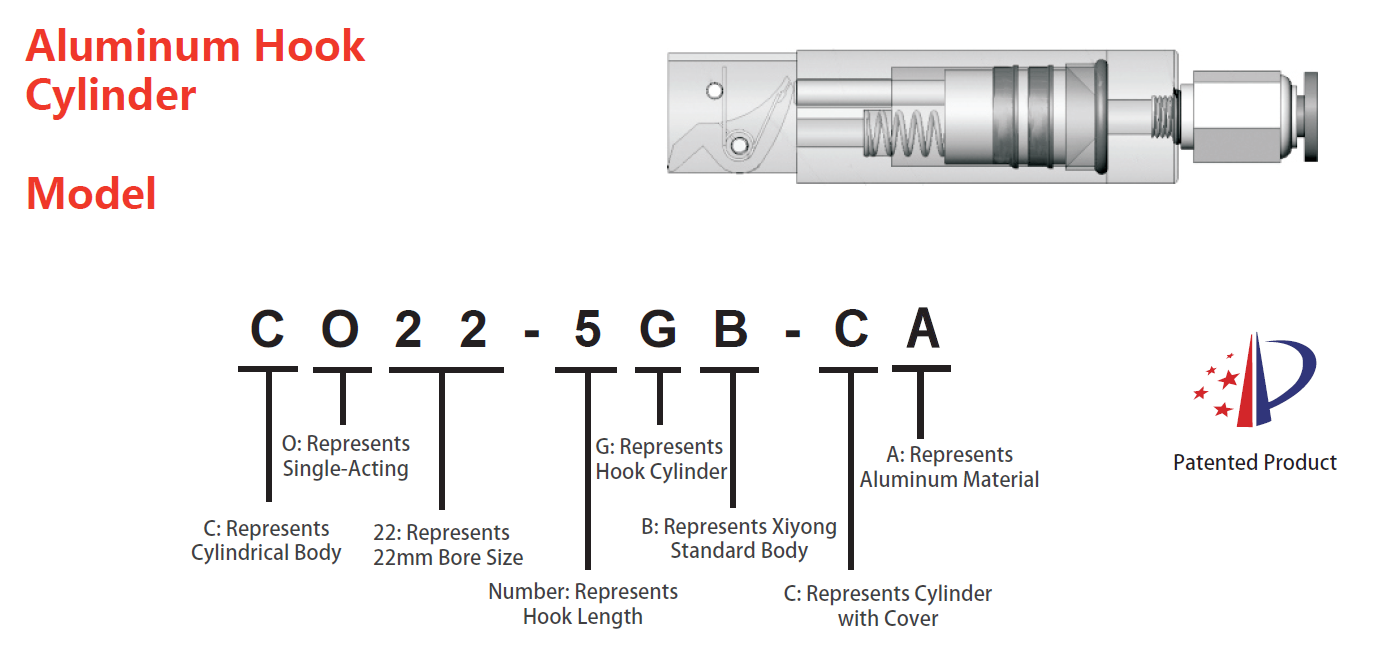

Product Model Reference:


Aluminum Hook Cylinder.png




Product Specifications:


ModelCO20-5GB-CA
TypePiston Cylinder
Cylinder Body ShapeCylindrical
Action ModeSingle-Acting
Outer Diameter(mm)Max Diameter 29, Min Diameter 27.5
Bore Size(mm)22
Hook Length(mm)5
Cylinder TypeHook Type
Cylinder Body TypeXiyong Cylinder Standard Body
PortSingle Port(∮3/4mm)
Quick FittingNone
Cover PlateYes
Cylinder Body MaterialAluminum (Black Anodized)
Pressure Range0.15~1.0MPA
Operating Temperature0℃~70℃

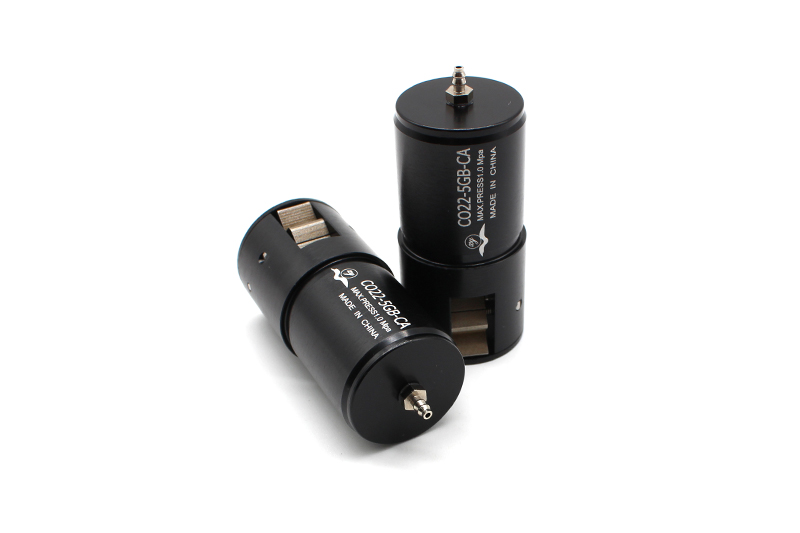

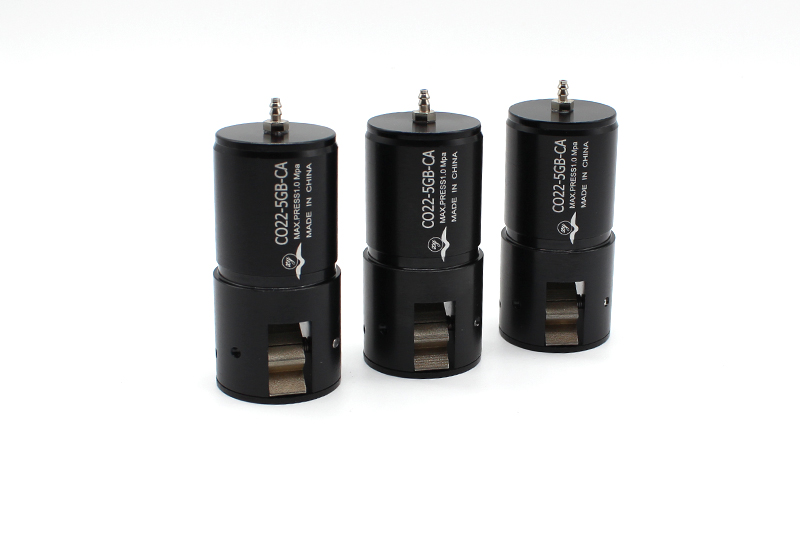

Product Image:
