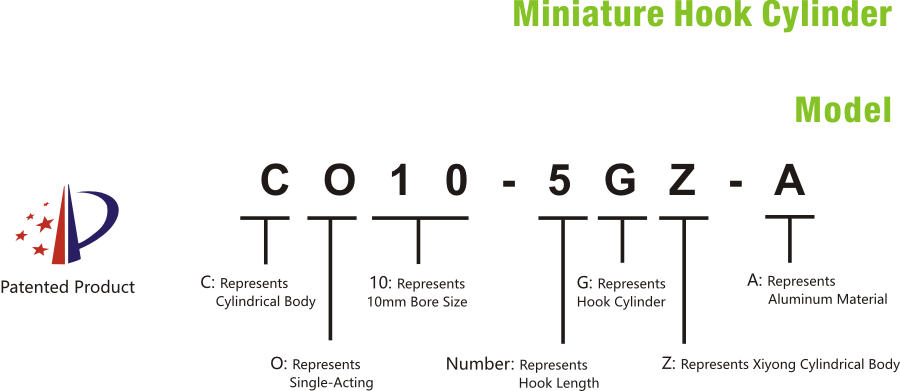

Product Model Reference:
Product Specifications:
Model | CO10-5GZ-A |
Type | Piston Cylinder |
Cylinder Body Shape | Cylindrical |
Action Mode | Single-Acting |
Outer Diameter(mm) | 12 |
Bore Size(mm) | 10 |
Hook Length(mm) | 5 |
Cylinder Type | Hook Type |
Cylinder Body Type | Xiyong Cylinder Cylindrical Body |
Port | Single Port (∮3/4mm) |
Quick Fitting | None |
Cover Plate | None |
Cylinder Body Material | Aluminum (Black Anodized) |
Pressure Range | 0.15~1.0MPA |
Operating Temperature | 0℃~70℃ |

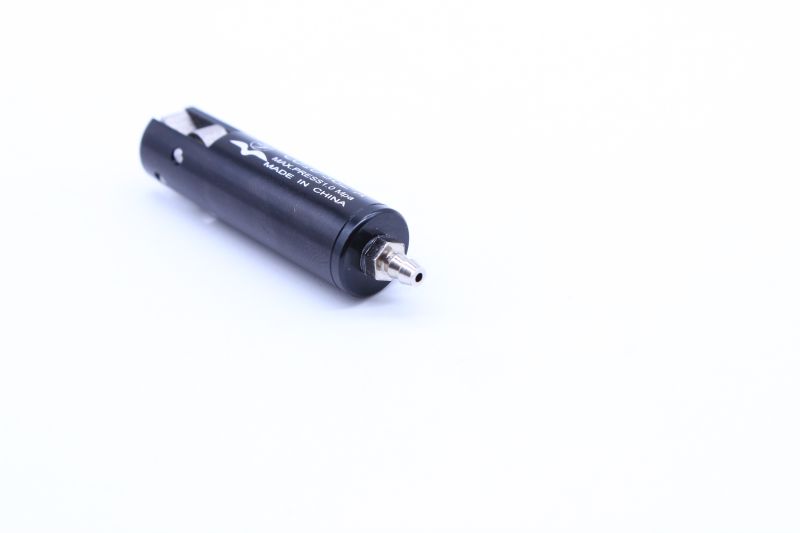

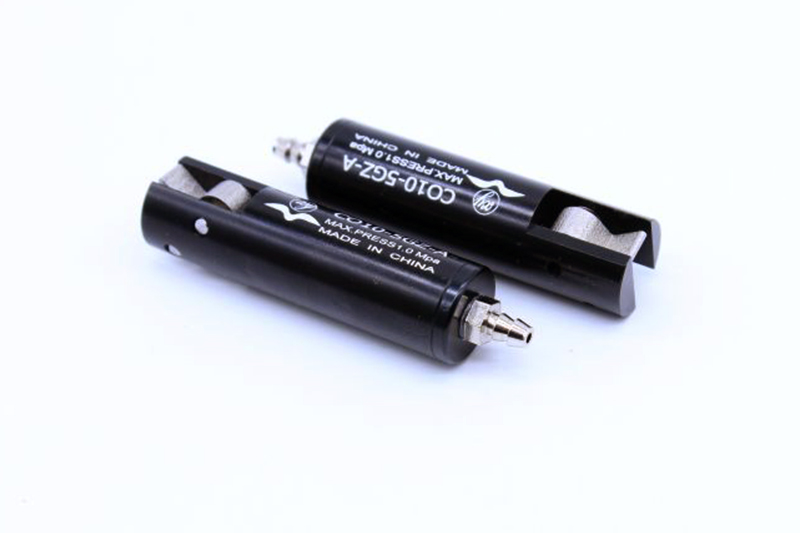

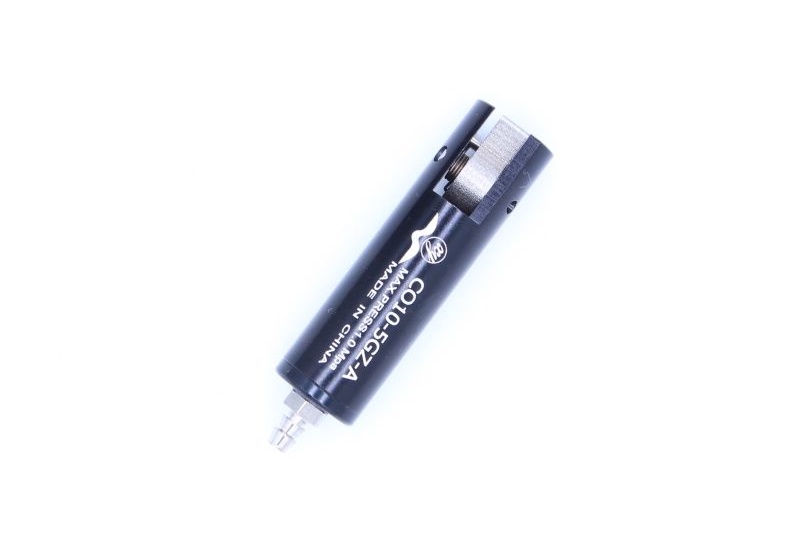

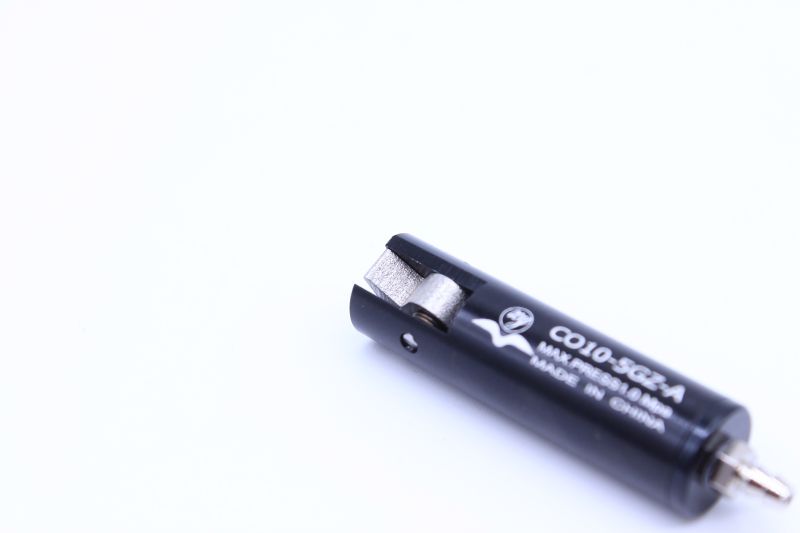

Product Image:
Tag:
