CO08-5GZ-A Miniature Hook Cylinder

Drawing:Data Download Drawing:Data Download(3D File)

Model:CO08-5GZ-A Cylinder Body Material: Aluminum (Black Anodized)

Instant inquiry Hotline
+0086-021-59542699
Product Introduction

Product Model Reference:



Miniature Hook Cylinder




Product Specifications:


ModelCO08-5GZ-A
TypePiston Cylinder
Cylinder Body ShapeCylindrical
Action ModeSingle-Acting
Outer Diameter(mm)10
Bore Size(mm)8
Hook Length(mm)5
Cylinder TypeHook Type
Cylinder Body TypeXiyong Cylinder Cylindrical Body
PortSingle Port(∮3/4mm)
Quick FittingNone
Cover PlateNone
Cylinder Body MaterialAluminum (Black Anodized)
Pressure Range0.15~0.8MPA
Operating Temperature0℃~70℃

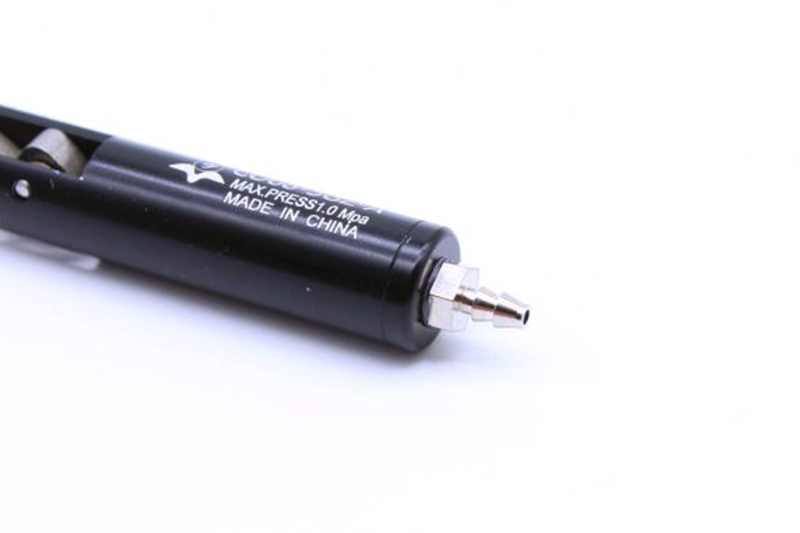

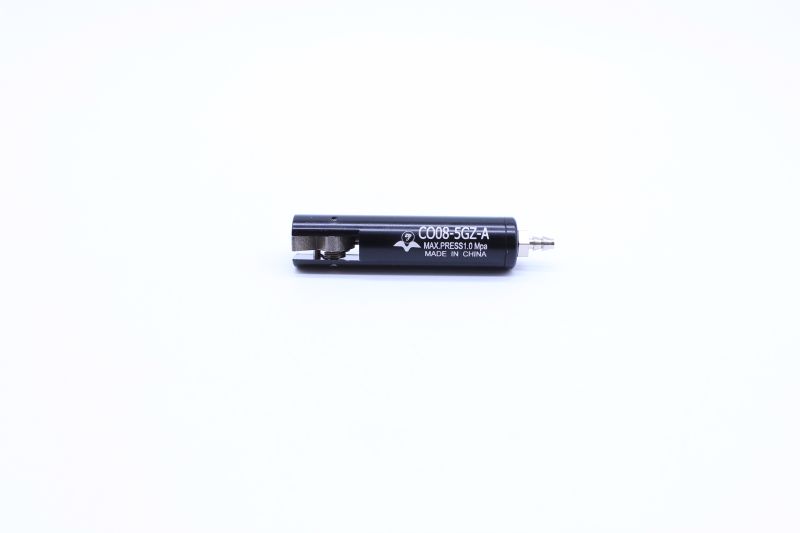

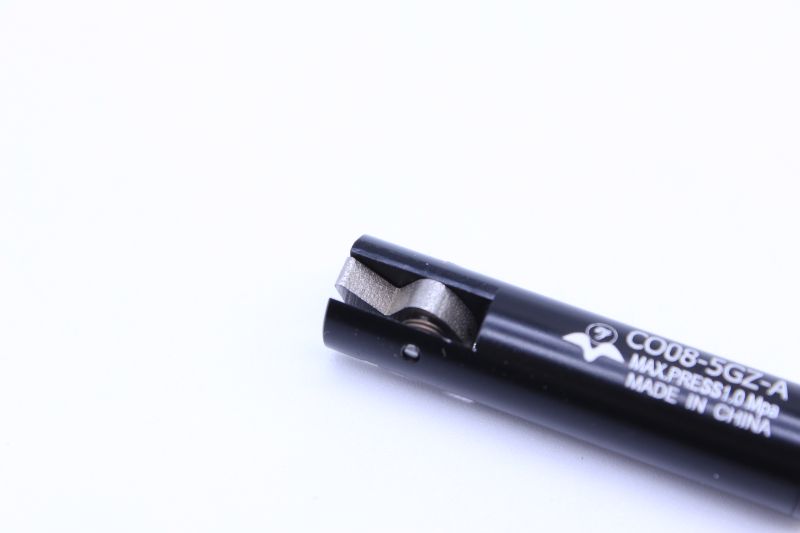

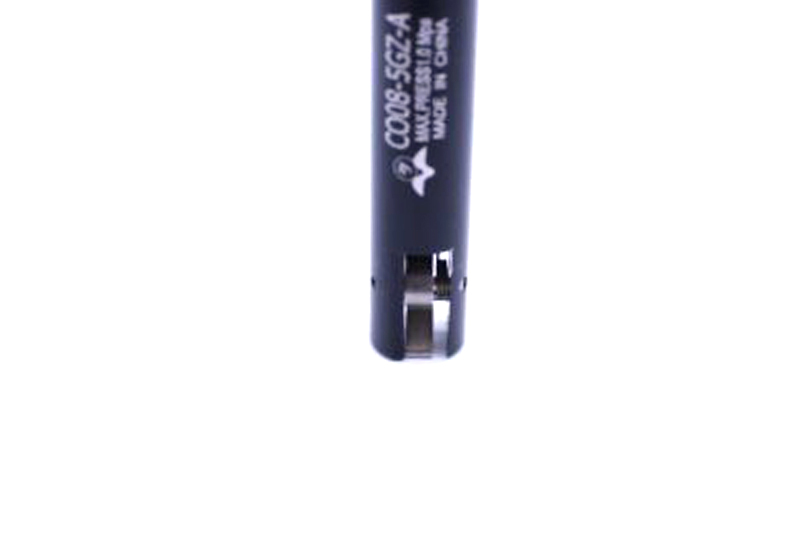

Product Image:
