CO12-4GB-P Plastic Hook Cylinder

Drawing:Data Download Drawing:Data Download(3D File)

Model:CO12-4GB-P Cylinder Body Material: Plastic

Instant inquiry Hotline
+0086-021-59542699
Product Introduction

Product Model Reference:


Plastic Hook Cylinder





Product Specifications:

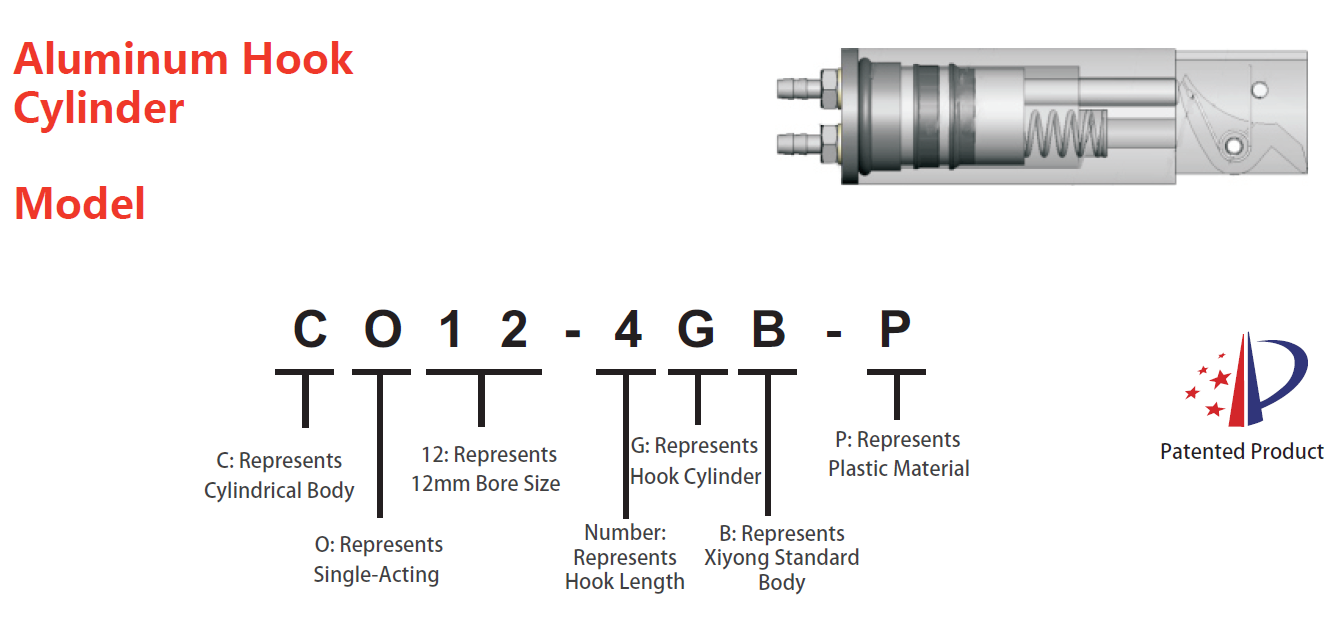

ModelCO12-4GB-P
TypePiston Cylinder
Cylinder Body ShapeCylindrical
Action ModeSingle-Acting
Outer Diameter(mm)16
Bore Size(mm)12
Hook Length(mm)4
Cylinder TypeHook Type
Cylinder Body TypeXiyong Cylinder Standard Body
PortSingle Port(∮3/4mm)
Quick FittingNone
Cover PlateNone
Cylinder Body MaterialPlastic
Pressure Range0.15~1.0MPA
Operating Temperature0℃~70℃

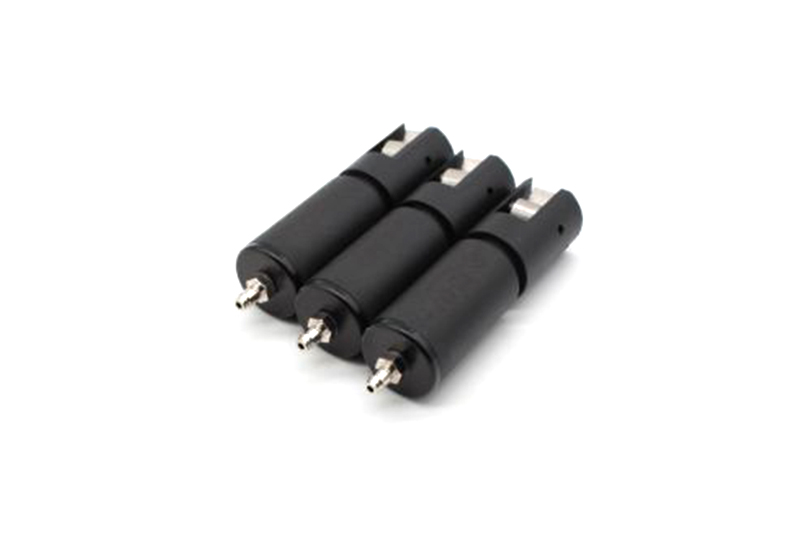

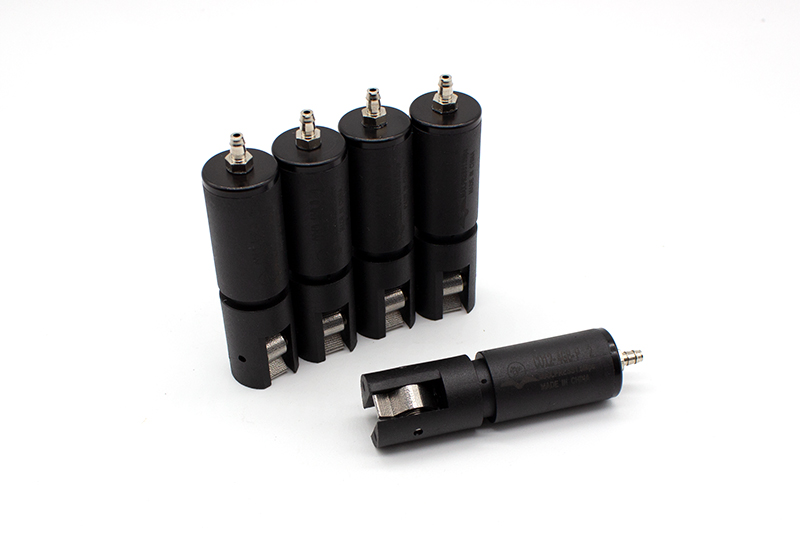

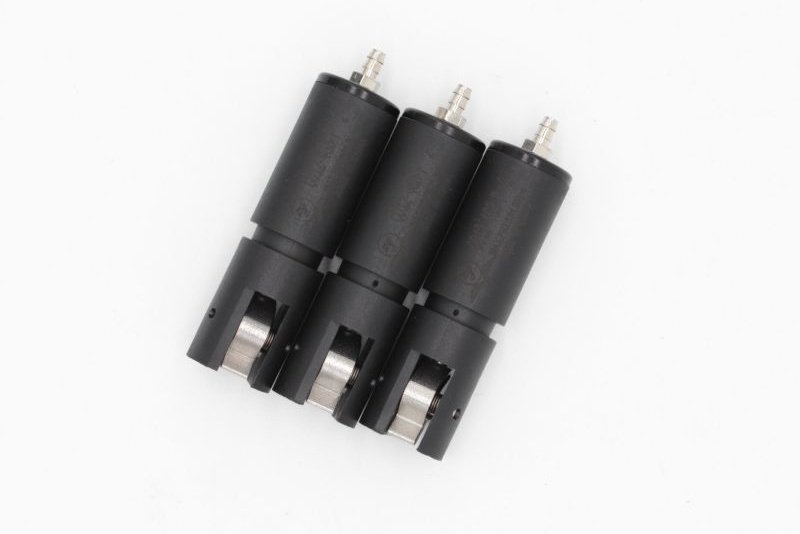

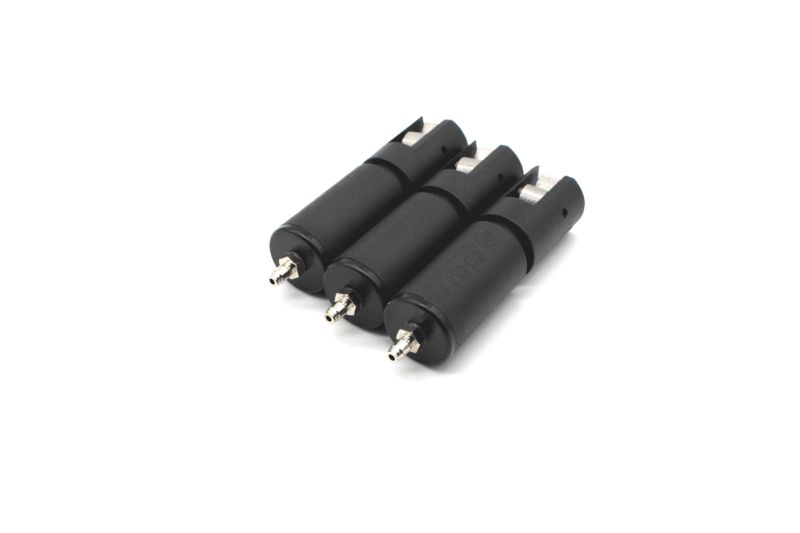

Product Image:
